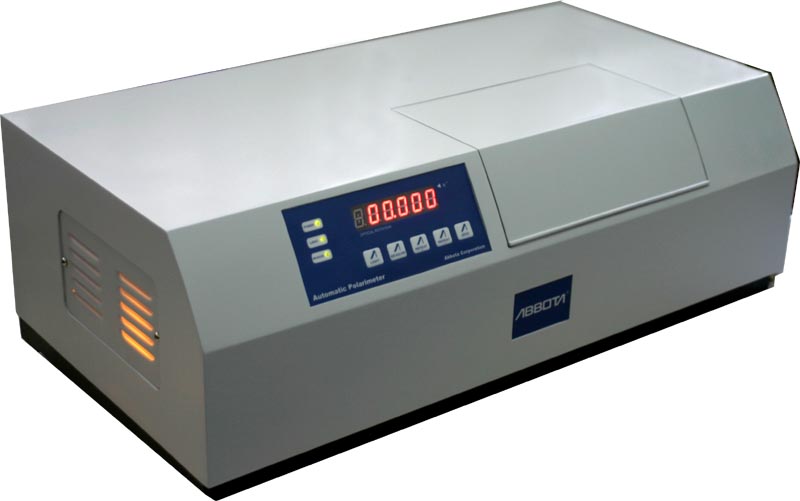

Automatic Polarization measures
the angle of rotation, international sugar scale,
specific optical rotation, concentration and purity.
It is pre-calibrated, high speed, highly accurate,
and automated. The completely self-contained system
gives fast, repeatable measurements of the polarization
of light. It is widely used in pharmaceutical, nutraceutical
and other labs.
|
 |
|
|
Features
- Fully automatic, precision accuracy with the touch
of a button
- Automatic measurement and digital display
- Easy operation: simply place a sample tube in the
machine and press START
- Manual calibration
- RS-232C input/output ports for connecting to a
computer system (optional)
|
|
|
| Specifications |
|
| Angle of Rotation |
-45 to +45 |
| Accuracy |
+/-(0.010 + measured value x 0.0005) |
| Resolution |
0.005 |
| Light source |
Sodium lamp |
| Repeatability |
0.010 |
| Speed |
1.30 second |
| Tube length |
up to 200 mm |
| Weight |
65 lbs (30kg) |
| Power Source |
110V/60Hz or 220V/50Hz, 220W |
| Shipping Size |
28 x 18 x 15 inch (720mm x 450mm x
360mm) |
|
|
|
|
Disc Polarimeters can be used in the
chemical industry, hospitals, colleges, universities
and scientific research for measuring the organic substances
with optical rotation. With the aid of the disk polarimeter,
the specific gravity, purity, concentration and content
of active materials (such as sugar solution, turpentine
oil or camphor) can be measured.
 |
Specifications
- Characteristic: visual aim, manual measure,
easy operation
- Measuring range of optical rotation 180
degree
- Dial Venire Value in Reading 0.05 degree
- Accuracy +/-0.05
- Sensitivity 0.05
- Monochromatic Light Source Sodium lamp
- Power supply 220V or 110V
- Shipping weight 8 kg (20 lbs)
- Shipping dimension 510mm x 135mm x 250mm
|
|
|
 |
|
