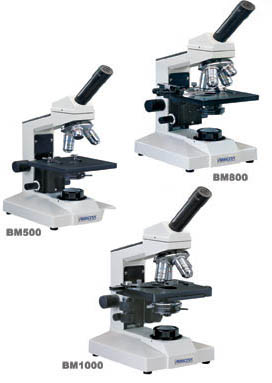

BM1000/800/500 series biological microscope
is equipped with a monocular, achromatic objectives
and wide field eyepieces. It provides clear images,
wide field of view, and convenient operation. It can
be used for medical research, agriculture, and many
other areas.
It is the ideal instrument for medical treatment, demonstration
and scientific research.
Features
- With wide field eyepieces and achromatic objectives,
the field of view is wide and clear.
- Separate coarse / fine system focus or coaxial
coarse/fine focus system is available, minimum division
of fine focusing: 4µm.
- Transmitted LED illumination, adjustable brightness.
- Shipping weight: 9.3 lbs / 4.2 kg
- Shipping size: 10.5x8.3x15.5 inch / 265x210x395
mm
|
|
Standard Configurations
|
|
|
|
Components
& Specification
|
BM500 |
BM800 |
BM1000 |
|
Eyepieces
|
Wide
Field |
WF10X(ø18mm) |
O
|
O
|
O
|
|
Objectives
|
Achromatic |
4X/0.1 |
O
|
O
|
O
|
| 10X/0.25 |
O
|
O
|
O
|
| 40X/0.65(Spring) |
O
|
O
|
O
|
| 100X/1.25(Spring) |
.
|
O
|
O
|
|
Nosepiece
|
Triple |
O
|
.
|
.
|
| Quadruple |
.
|
O
|
O
|
|
Monocular
|
Inclination
of 45°, 360° rotatable |
O
|
O
|
O
|
|
Stage
|
Fixed
stage, Size: 120mmx120mm |
O
|
.
|
.
|
| Fixed
stage with removable mechanical, Size: 120mm x 120mm,
Move range >=28mm x 68mm |
.
|
O
|
.
|
Mechanical
stage, Size: 115mmx125mm,
Move range>=30mmx70mm |
.
|
.
|
O
|
|
Focus
System
|
Separate
coarse / fine focus |
O
|
O
|
O
|
|
Condenser
|
Single
lens with iris diaphragm |
O
|
.
|
.
|
| Abbe
condenser NA=1.25, Spiral adjustment |
.
|
O
|
.
|
| Abbe
condenser NA=1.25, Rack pinion adjustment |
.
|
.
|
O
|
|
Light
source
|
Illumination
with 110V or 220V, 15W ordinary lamp |
O
|
O
|
O
|
Note: "O"
is standard accessories.
|
 |
|
